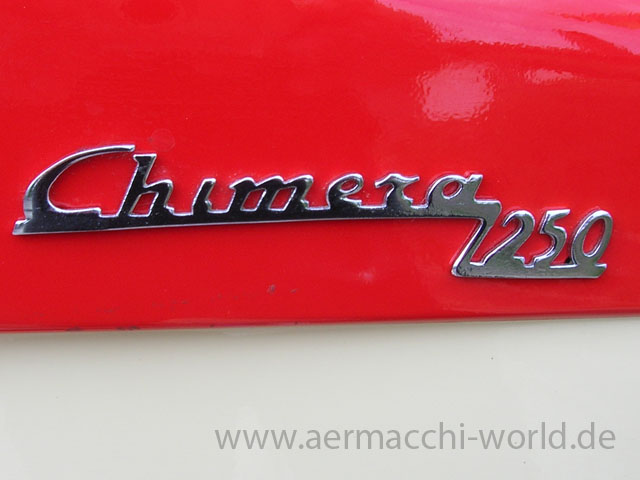

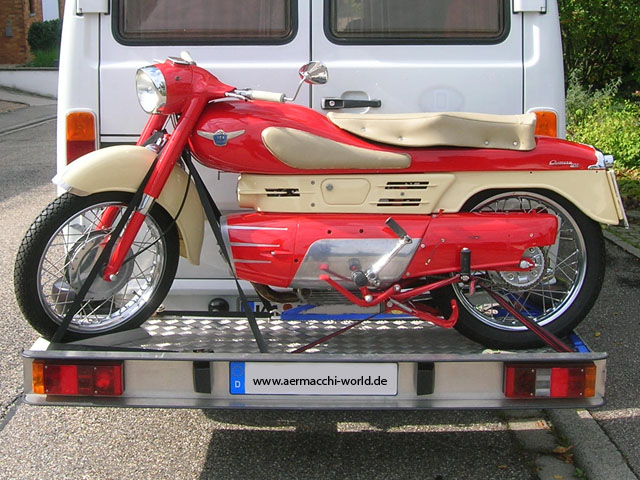

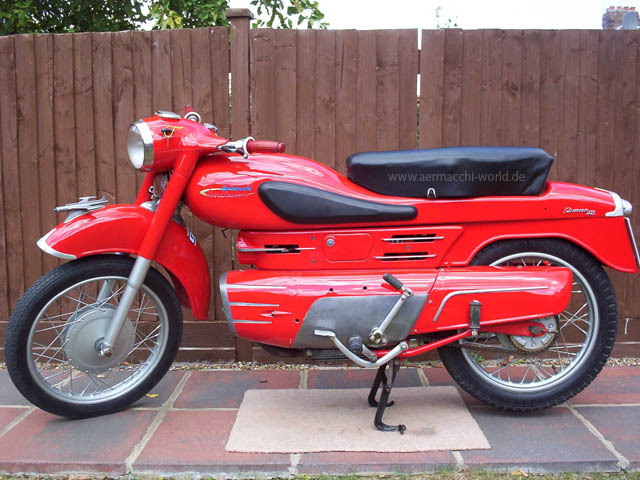

Chimera 250
| General | |
|---|---|
| Model Designation Letters | Chimera 250 |
| Model build time | 1958-1964 |
| Vehicle Identificiation | |
| Bikes Produced | 177 (documented) |
| Price | |
| Frame | backbone |
| Electrical System | 6V |
| Top Speed | ~120 Km/h |
| Chassis | |
| Front suspension | Upside-Down |
| Rear suspension | monoshock |
| Front wheel tire | Pirelli 2.75-17 |
| Rear wheel tire | Pirelli 3.00-17 |
| Front brake | Internal Expanding 160 mm |
| Rear brake | Internal Expanding 140 mm |
| Rims (Front & Rear) | 17" |
| Tire pressure (Front) | |
| Tire pressure (Rear) | |
| Dimensions & Weight | |
| Overall length | |
| Handlebar width | |
| Ground clearance | |
| Wheelbase | 1360 mm |
| Total Weight | 125 kg |
| Seats | two persons |
| Saddle Height | |
| Fuel Tank | |
| Fuel Tank Reserve | |
| Engine | |
| Type | 4-Cycle OHV, Single Cylinder |
| Bore | 66 mm |
| Stroke | 72 mm |
| Piston displacement | 246.2 ccm |
| Horsepower | 13.7 CV at 6500 1/min |
| Max. Torque | |
| Gearshift pattern | 4-Speed |
| Compression ratio | 7:1 |
| Lubrication system | |
| Starter system | |
| Carburetor | Dell'Orto |
| Clutch | wet |
| Gear ratios | |
| Spark Plug |
